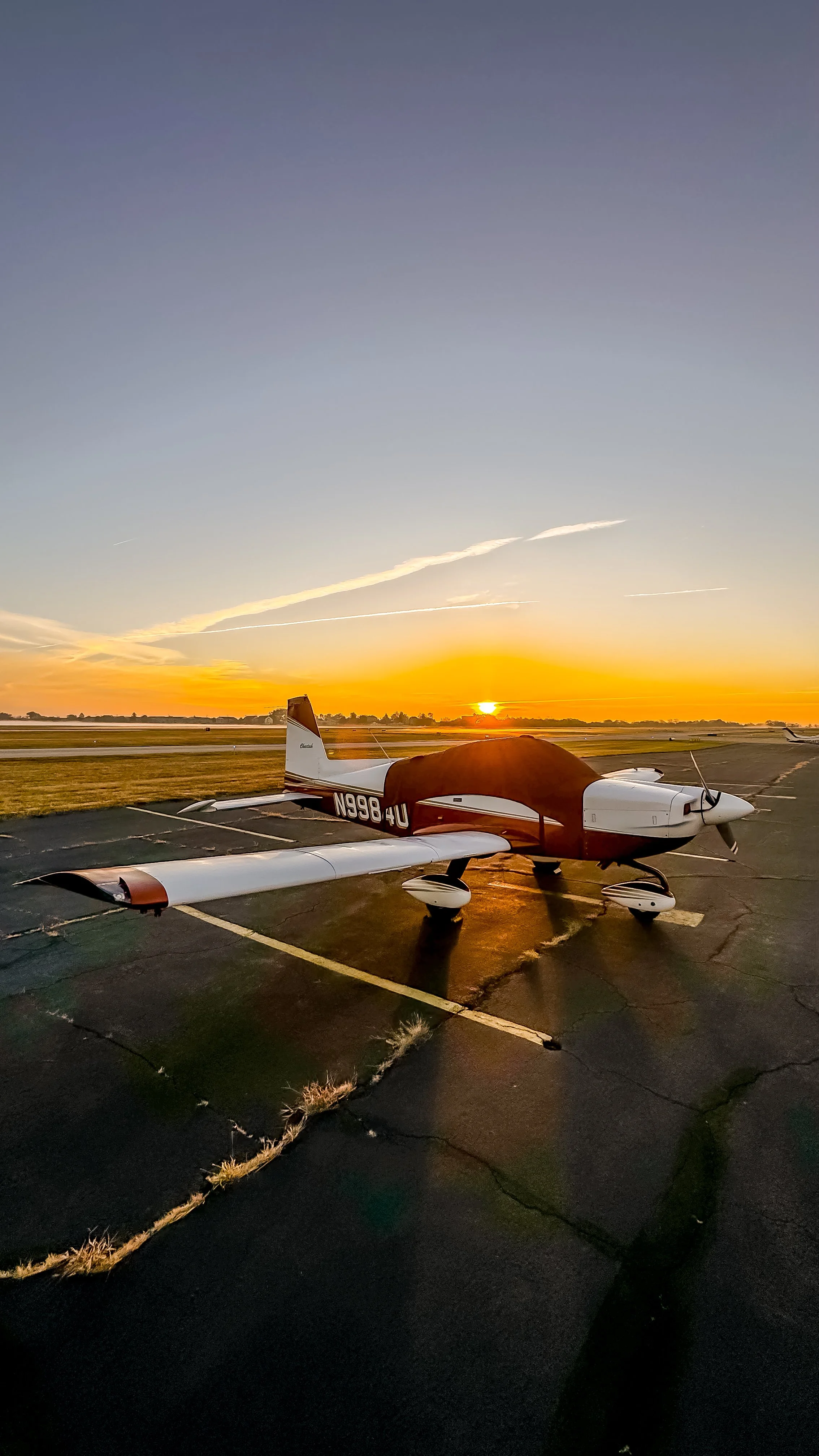

Grumman American AA-5A Cheetah
N9984U (S/N AA5A-0384)

AIRFRAME:
Total Hours: 2857.1
Fuel capacity: 51 gallons (50 usable)
Useful load: 708 lbs
New windshield, canopy and rear windows installed in 2022.
IFR Certified October 2024 (next due October 2026)
AEROLEDs Nav lights/Strobe lights, Flashing beacon and Landing Light w/ steady and recognition modes

POWERPLANT
Engine: Lycoming O-320-E2G
Horsepower: 160hp (High Compression STC)
Time Since Main Overhaul (TSOH): 1224.3 (TBO: 2000)
Compressions (Feb 2025): #1 76/80, #2 75/80, #3 78/80, #4 76/80
Prop Time Since New (SNEW): 744.5

UPGRADES:
- Powerflow Exhaust System installed in 2021
- SureFly Electronic Magneto installed in 2021 (left side)

AVIONICS
New panel installed in September 2022 with custom layout.

- Aspen Evolution 2000 MAX (PFD+MFD) with ADS-B Weather and Traffic
- Avidyne IFD550 with Synthetic Vision and Stand-by AHRS (Attitude Indicator) and ADS Traffic
- Trio ProPilot 2-axis Autopilot with ALT hold, HDG hold, GPSS, Full-Approach Mode (LOC+GS) and Emergency recovery button
- JPI EDM 900 Engine Monitor with CHT, EGT, Lean Assist, RPM, Fuel Flow and Fuel quantity (CIES fuel senders installed in 2023).
- Garmin GTX345 Transponder ADS-B In and Out
- Garmin GMA340 Radio panel
- Guardian 553 CO Detector with digital clock (Zulu + Local time) and cabin altitude
- 2 Garmin GSB15 USB ports (pilot and co-pilot)
- iCOM IC-A210 Radio (Comm 2)
- “Fly With Bruno” Logo printed on removable 3/8” panel with 4 screws

LAST ANNUAL COMPLETED February 2025
(next due February 2026)

In addition to standard inspection in accordance with the Grumman Maintenance Manual, the following parts were installed:

- Brand New Magneto (right side)
- Overhauled carburetor with increased fuel flow
- New set of spark plugs (8)
- New set of tires (Goodyear Flight Special II 600x6 and leakguard tubes)
- New sump covers (painted to match)
- New dorsal fin (painted to match)

All logs since new (available upon request).
Plane hangared at Somerset, New Jersey (KSMQ).

INCLUDED
- Custom Bruce Cover (water-repellent)
- Custom set of chocks
- Custom cowl plugs
- Tow-bar
